China turnstile van de snelheidspoort fabrikant

Vermelde Voetturnstile en Parkerenapparatenfabrikant meer dan 15 Jaar!

Voorraadcode: 832966

Dutch
Verzoek om een Citaat
Producten

Swing Turntile RFID/Qr-code Barcode High Speed Turntile Gate Turntile Access Control

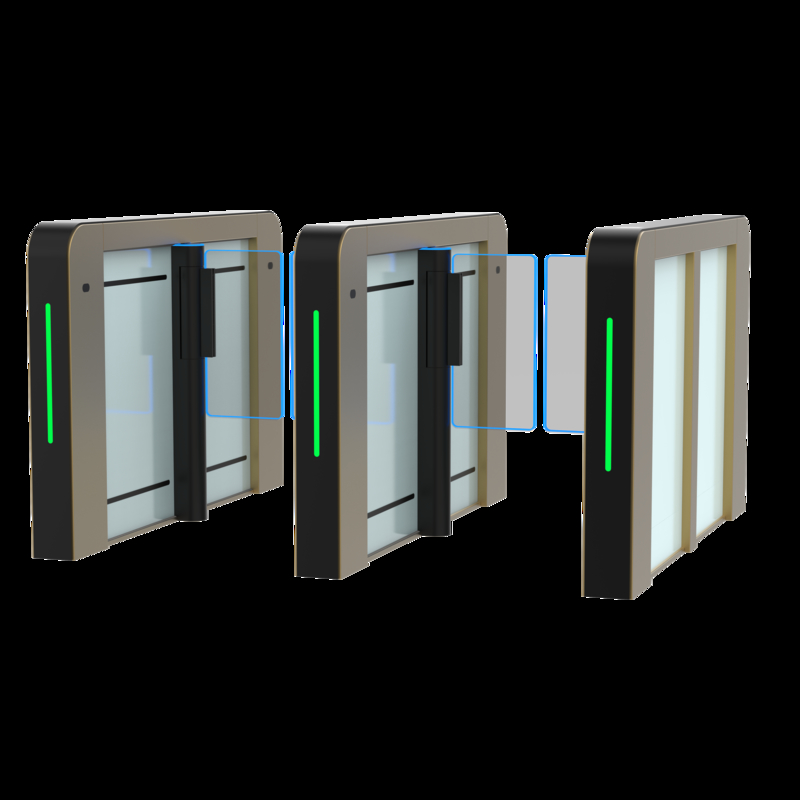

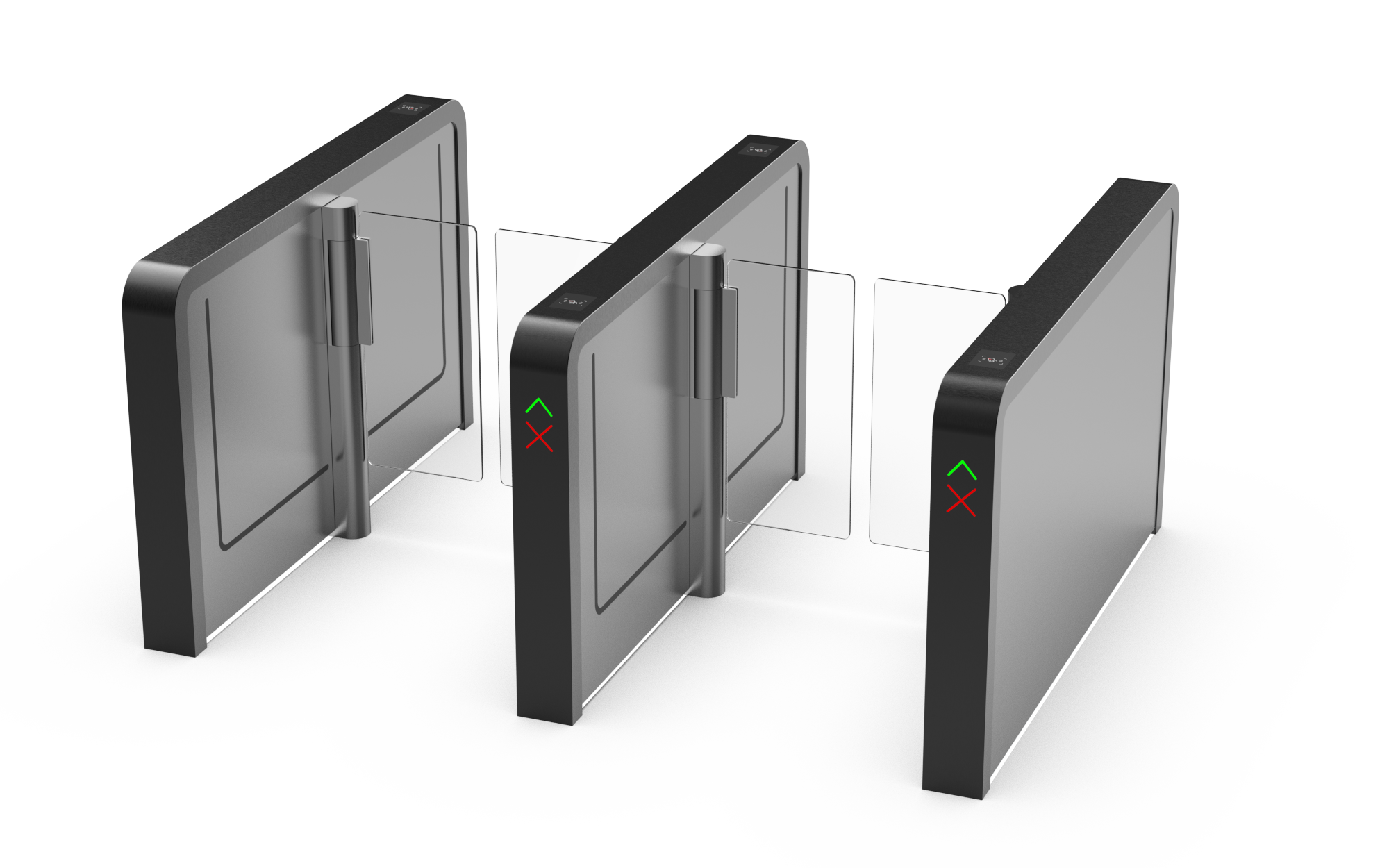

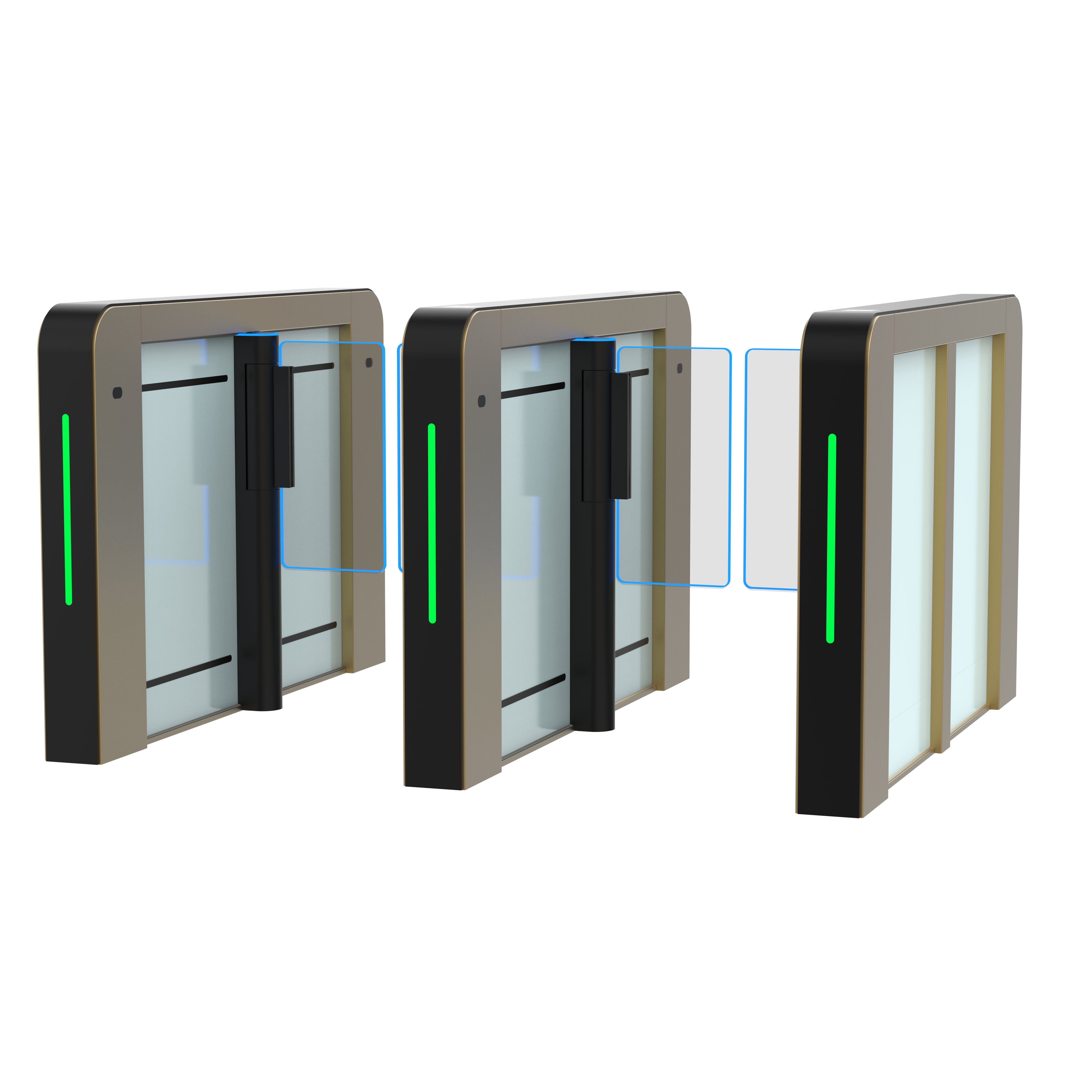

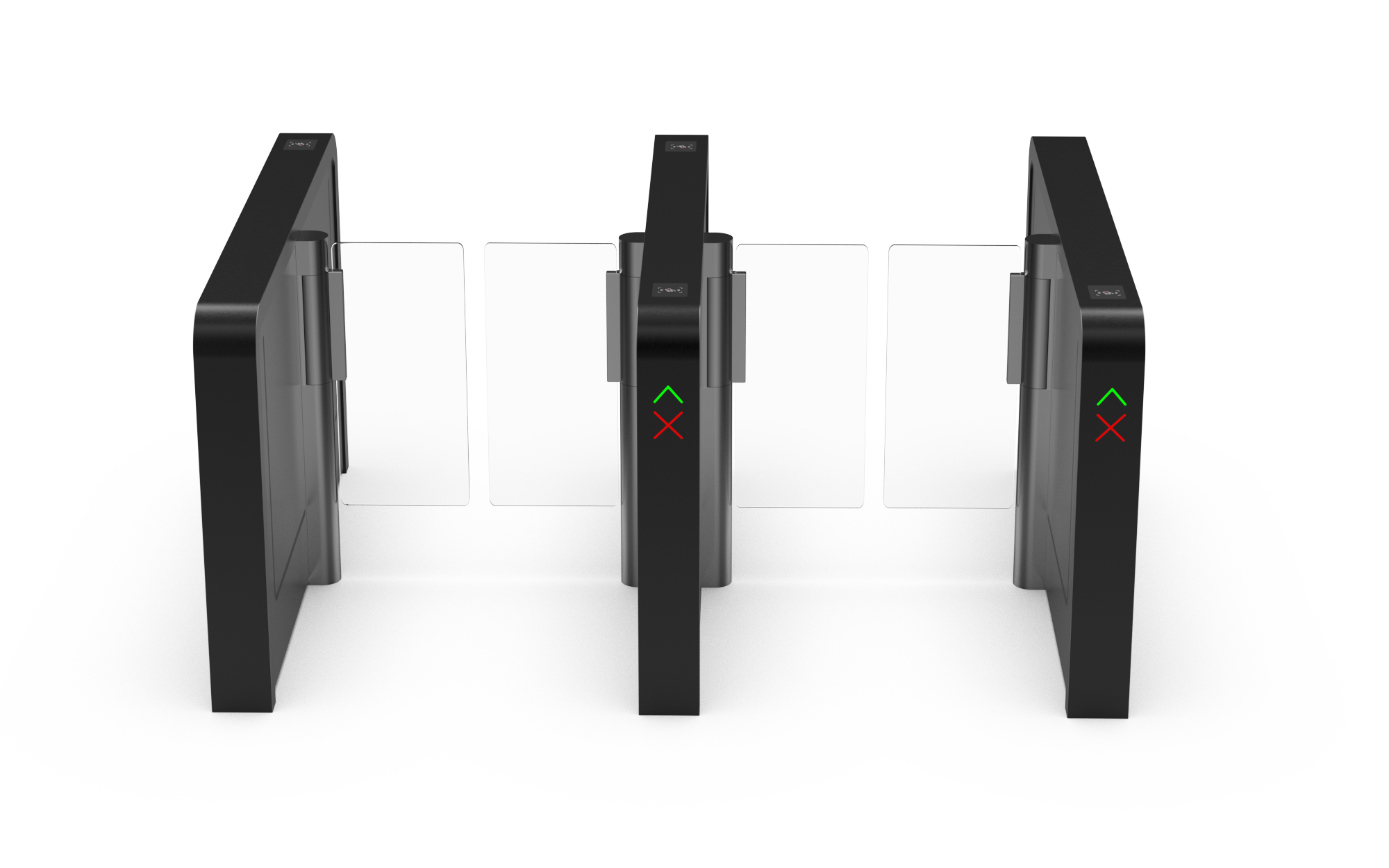

High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control
High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control High Speed Swing Turnstile Gate with RFID QR Code Access Control
Basisinformatie
Place of Origin: China
Merknaam: DOOR or OEM
Certificering: CE / IS09001
Model Number: DR.TD.6629
Minimum Order Quantity: 1 lane
Prijs: negotiable
Packaging Details: Plywood box ，L1600×W140×H1000mm
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 2500 sets per month
Beste prijs Contact nu
Material: SUS304 Stainless Steel + Aluminum Alloy Working environment: -25℃-+70℃
Pass speed: 35-40 personal/min Motor: Servo motor
Photocell: 12 pairs Passage Width: Standard 600mm, max 900mm
Swing arm available: Acrylic IP Rating: IP42
Mean Cycles Between Failure: 20 million times Voltage: AC110V/AC220V±10% 50-60Hz
Operating Power: Single Core 100w, dual core 200w Method of position: Motor + clutch + encoder
Markeren:

high speed swing turnstile gate

,

RFID QR code access control turnstile

,

speed gate turnstile with RFID

Swing Turnstile RFID/Qr Code Bar Code High Speed Turnstile Gate Turnstile Access Control
Product Specifications
Attribute Value
Material SUS304 Stainless Steel + Aluminum Alloy
Working environment -25℃ to +70℃
Pass speed 35-40 persons/min
Motor Servo motor
Photocell 12 pairs
Passage Width Standard 600mm, max 900mm
Swing arm available Acrylic
IP Rating IP42
Mean Cycles Between Failure 20 million times
Voltage AC110V/AC220V±10% 50-60Hz
Operating Power Single Core 100w, dual core 200w
Method of position Motor + clutch + encoder
Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization
Shipping Information

Shipping fee and delivery date to be negotiated. Please contact us for more details.

High-End Screwless Fast Speed Turnstile Gate With 0.3S Servo Motor

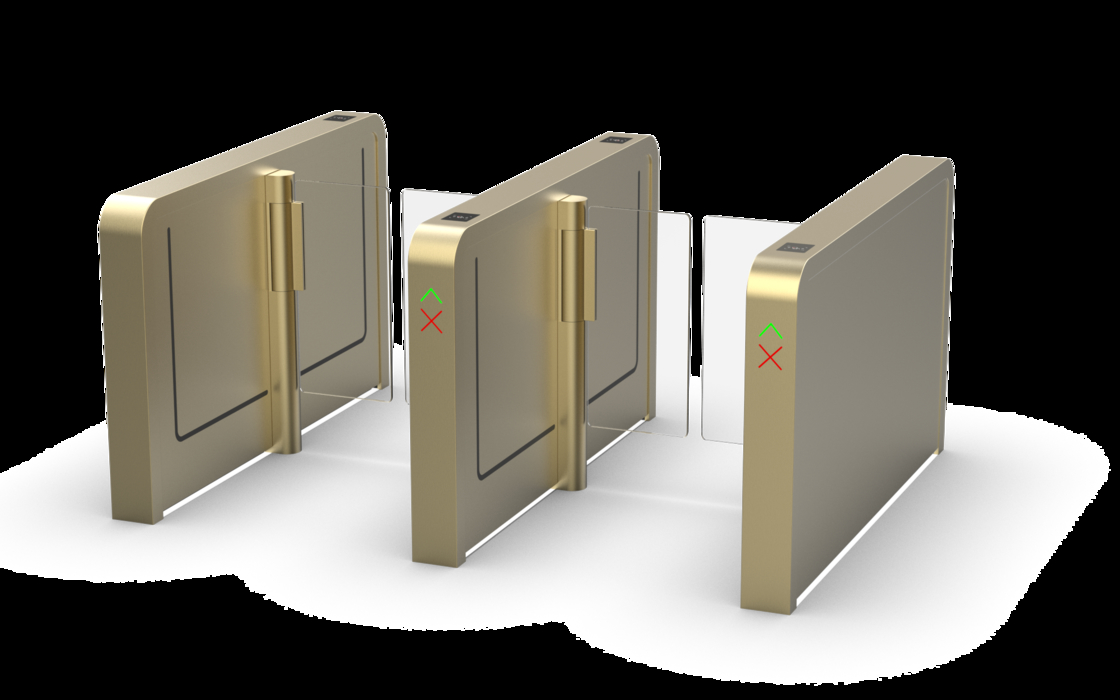

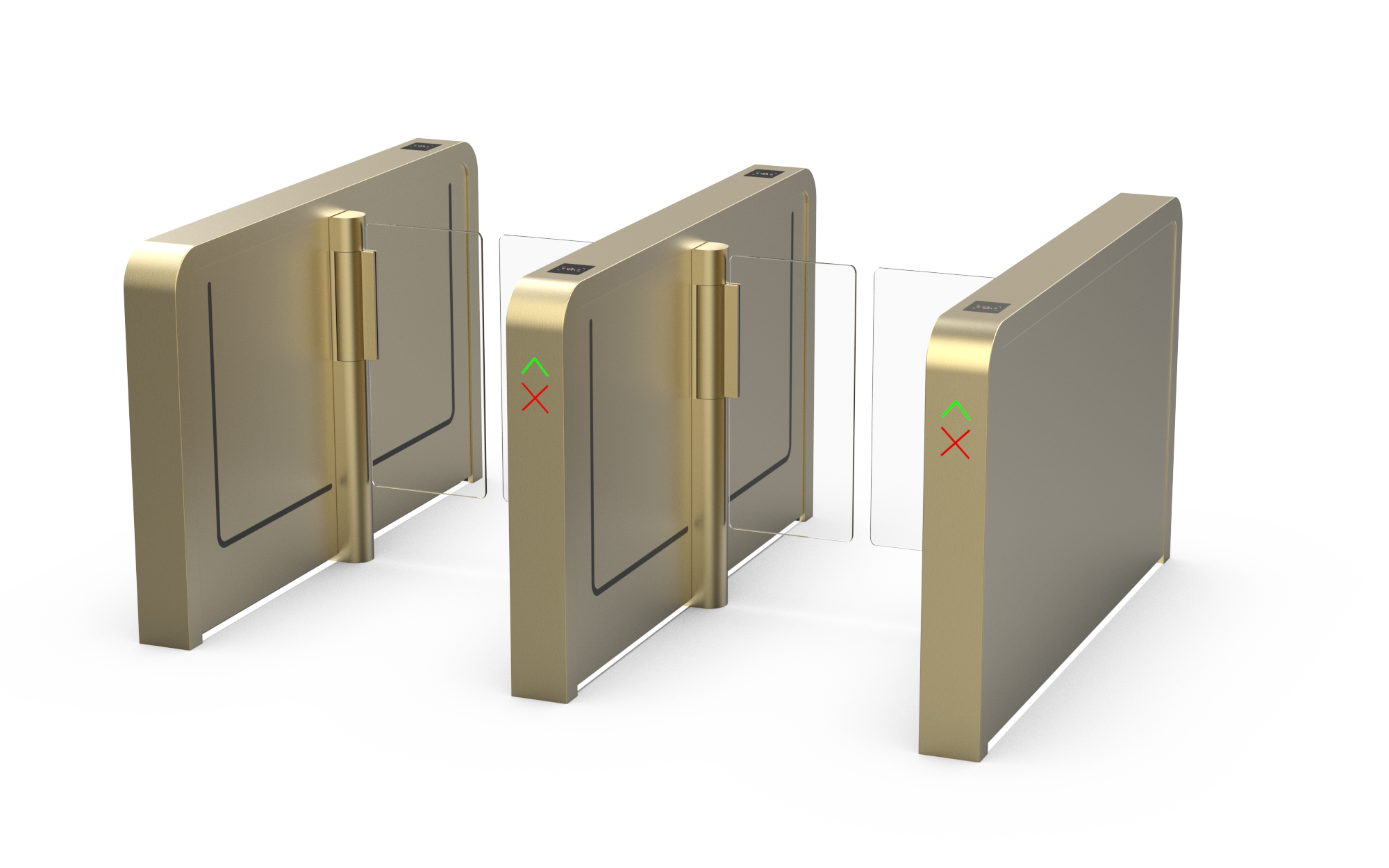

The speed gate features a premium construction with aluminum alloy top cover and stainless steel body (brushed SUS304 thickness 2.0mm) in elegant champagne gold finish.

  • Anodized aluminum alloy surface after sandblasting for bright, delicate and smooth finish
  • Traditional mortise and tenon process design with no visible screws or keyholes
  • Innovative hidden infrared design between double tempered glass
  • Precision gap of less than 0.2mm between components demonstrates craftsmanship
  • Servo motor with self-developed FOC control technology for precise positioning
  • Ultra-fast opening time of 0.3 seconds
Advanced Safety Functions
  • Anti-trailing: Multiple infrared beam monitoring ensures one-person-one-card passage
  • Anti-reverse: Precise monitoring prevents reverse passage with automatic blockade
  • Triple safety protection: Infrared anti-clip, process logic protection, and current detection
Optional Configurations

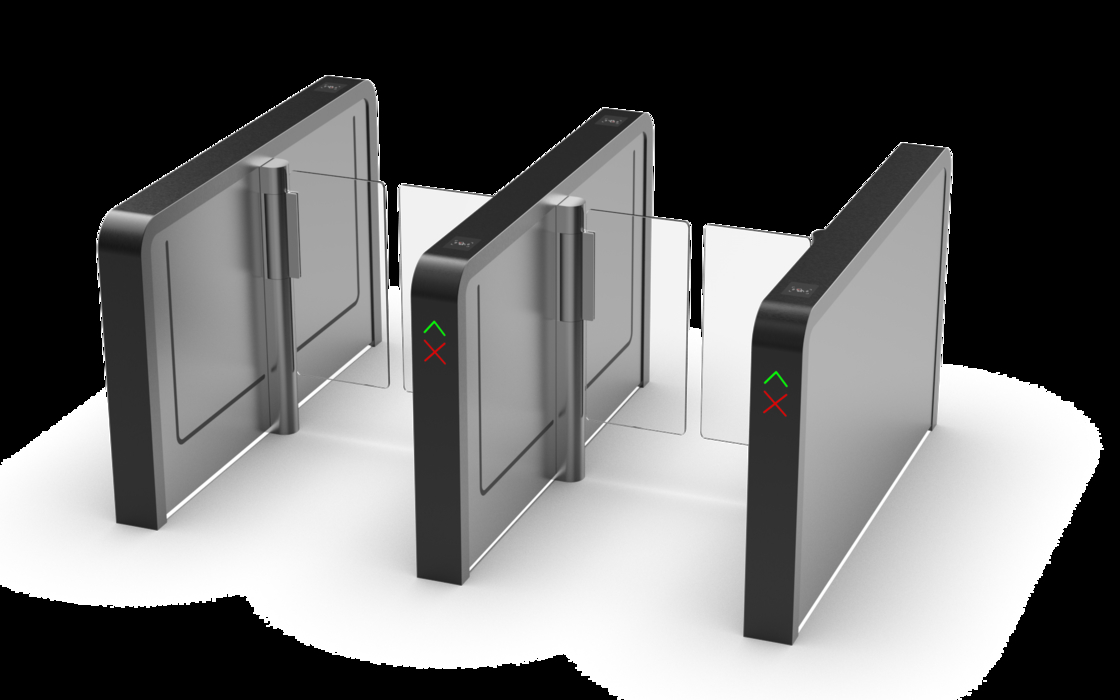

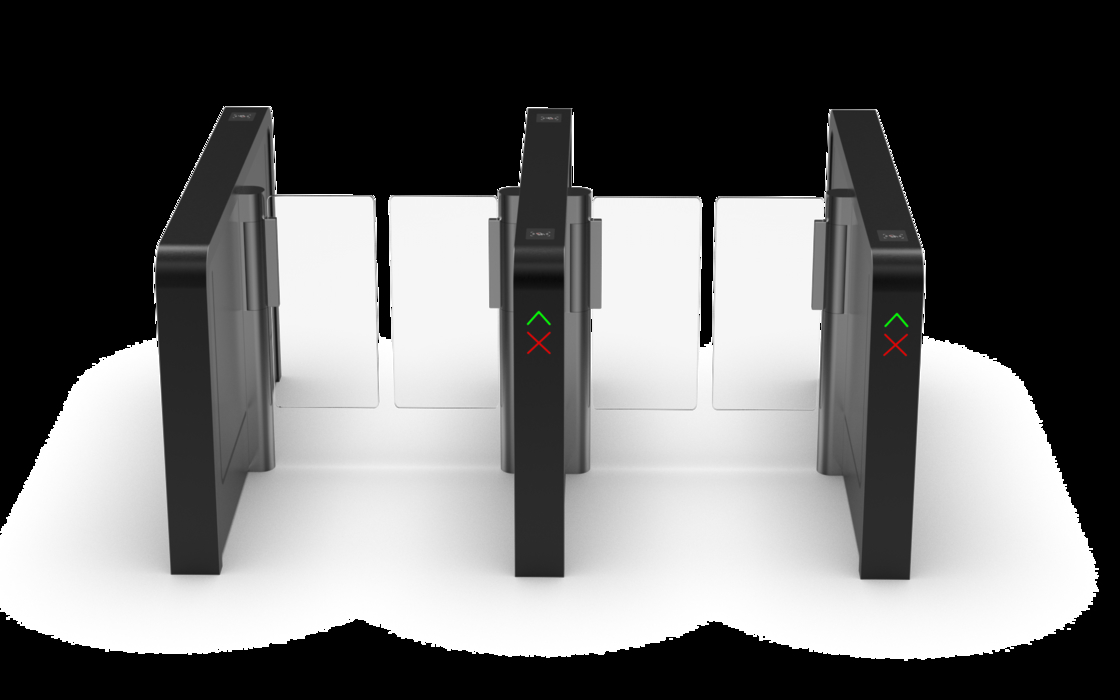

Swing Turntile RFID/Qr-code Barcode High Speed Turntile Gate Turntile Access Control 0
Swing Turntile RFID/Qr-code Barcode High Speed Turntile Gate Turntile Access Control 1
Swing Turntile RFID/Qr-code Barcode High Speed Turntile Gate Turntile Access Control 2

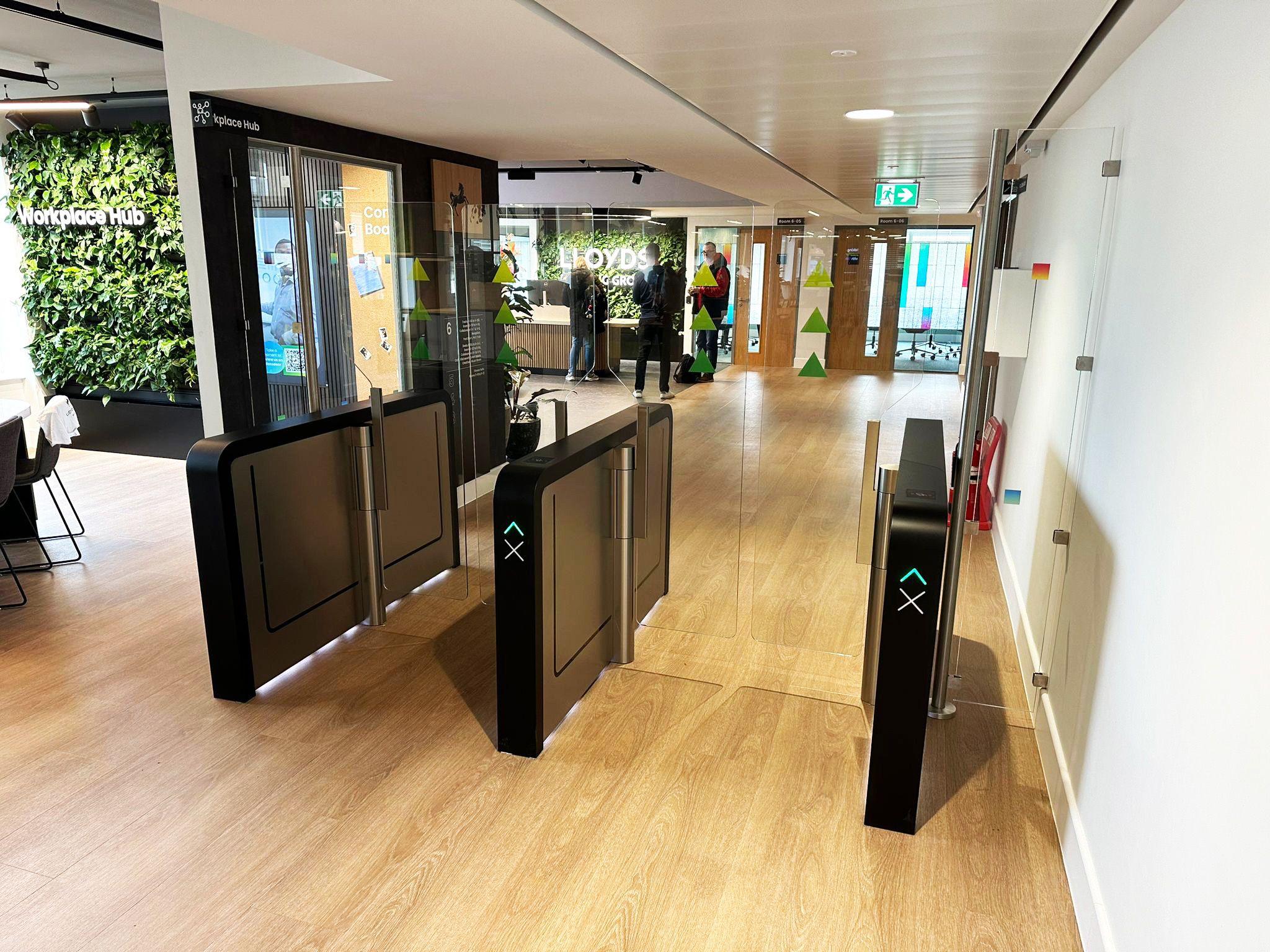

Typical Applications

This advanced speed gate is ideal for:

  • Office and administrative buildings
  • Government and public buildings
  • Banks and financial institutions
  • Industrial installations
  • Residential areas
  • Educational institutions
Packing Details
  • Size: 169*34*118mm
  • Gross Weight: Side cabinet - 125kg, Middle cabinet - 135kg

label:

Beveiliging tourniquet Gate,

Elektronische turnstile poorten,

Half Hoogte tourniquet
